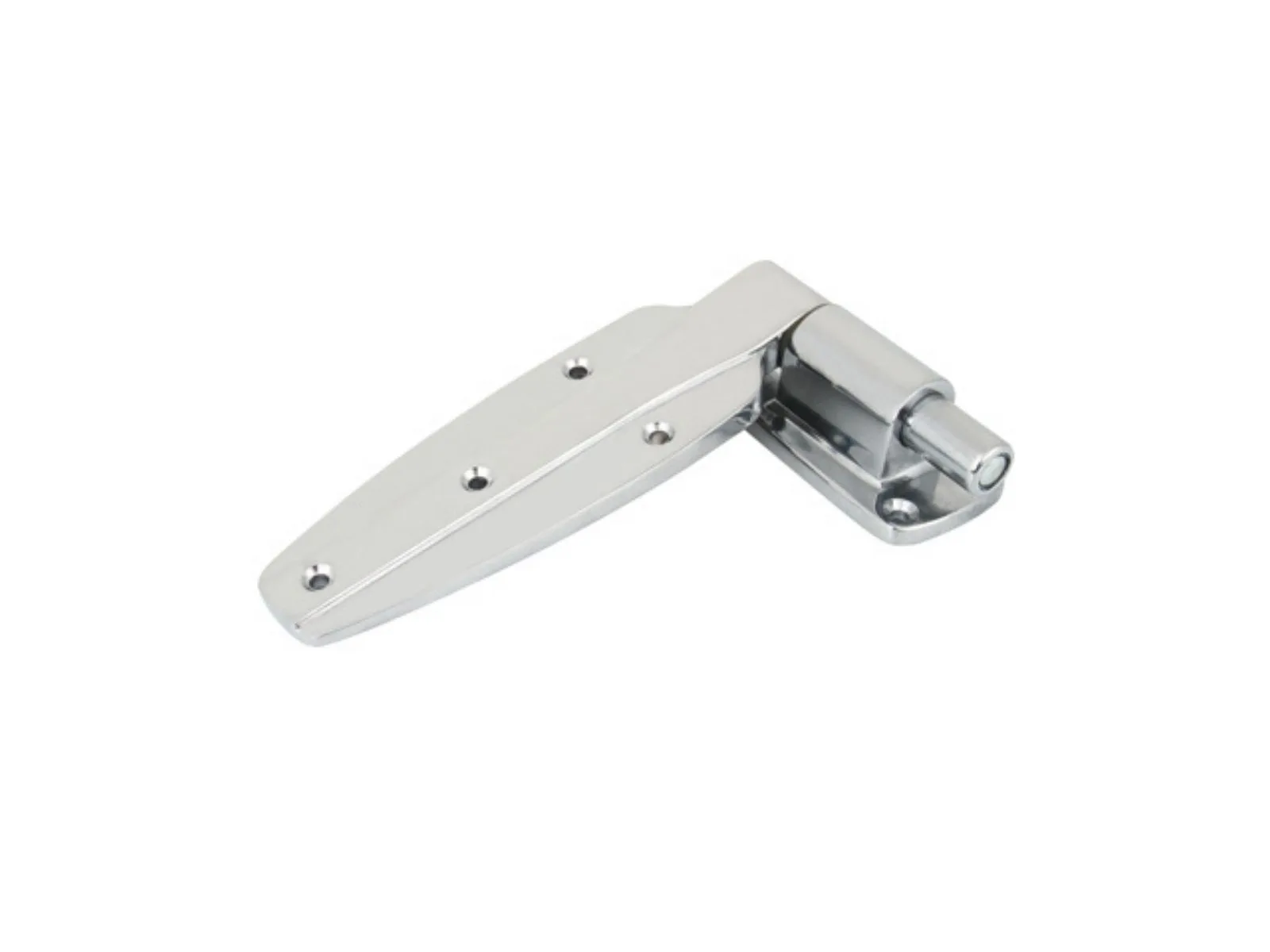

Reversible Reach-in Plane Hinge RF-232

Extra Closing Force. Superior Performance.

• Built-in spring mechanism provides additional closing force, ideal for heavy walk-in doors that need to overcome air resistance
• Features a specially designed high-lift cam system that outperforms comparable spring hinges
• Cam-rise action minimizes gasket wear, even on uneven or irregular floors
• Built-in dwell function keeps the door open at angles beyond 130°
• Easily reversible by hand for seamless use on both right- and left-opening doors

Specifications

• Material: High pressure die-cast zinc with self-lubricating nylon cam
• Finish: Multiple finish options available — powder coat also offered for added durability

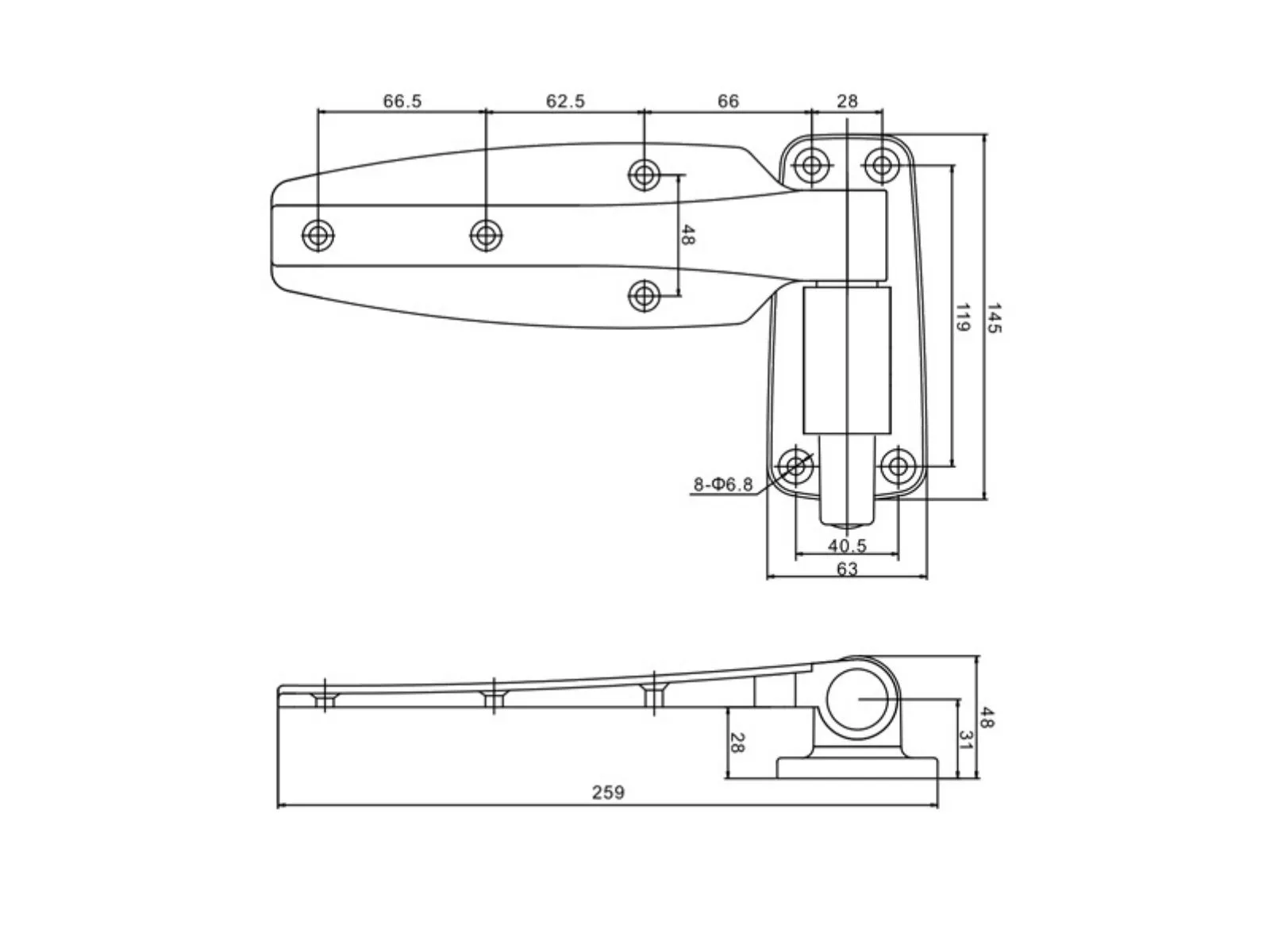

• Mounting: Pre-drilled and countersunk holes for ¼” (6.0 mm) flat head screws
